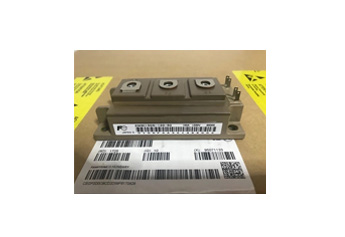

富士IGBT模块 _【S系列】
2020-08-10浏览量：1628
富士IGBT模块 _【S系列】
单列直插S系列6合1 IGBT
| 产品型号 | 参数说明 | 封装形式 | 技术资料 |
| 6MBI10GS-060 | 600V,10A/TC=25℃,饱和压降2.8 | M619 | |
| 6MBI15GS-060 | 600V,15A/TC=25℃,饱和压降2.8 | M619 | |
| 6MBI20GS-060 | 600V,20A/TC=25℃,饱和压降2.8 | M619 |
S系列第四代IGBT模块
| 产品型号 | 参数说明 | 封装形式 | 技术资料 |
| 1MBI200S-120 | 1200V,300A/TC=25℃,饱和压降2.3 | M127 | |
| 1MBI300S-120 | 1200V,400A/TC=25℃,饱和压降2.3 | M127 | |
| 1MBI400S-120 | 1200V,600A/TC=25℃,饱和压降2.3 | M127 | |
| 2MBI100S-120 | 1200V,150A/TC=25℃,饱和压降2.3 | M234 | |
| 2MBI100SC-120 | 1200V,150A/TC=25℃,饱和压降2.3 | M233 | |
| 2MBI150S-120 | 1200V,200A/TC=25℃,饱和压降2.3 | M233 | |
| 2MBI150SC-120 | 1200V,200A/TC=25℃,饱和压降2.3 | M234 | |
| 2MBI200S-120 | 1200V,300A/TC=25℃,饱和压降2.3 | M234 | |
| 2MBI200SB-120 | 1200V,300A/TC=25℃,饱和压降2.3 | M235 | |
| 2MBI300S-120 | 1200V,400A/TC=25℃,饱和压降2.3 | M238 | |
| 2MBI75S-120 | 1200V,100A/TC=25℃,饱和压降2.3 | M232 | |
| 6MBI100S-120 | 1200V,150A/TC=25℃,饱和压降2.3 | M626 | |
| 6MBI10S-120 | 1200V,15A/TC=25℃,饱和压降2.3 | M623 | |
| 6MBI15S-120 | 1200V,25A/TC=25℃,饱和压降2.3 | M623 | |
| 6MBI25S-120 | 1200V,35A/TC=25℃,饱和压降2.3 | M623 | |
| 6MBI35S-120 | 1200V,50A/TC=25℃,饱和压降2.3 | M623 | |
| 6MBI50S-120 | 1200V,75A/TC=25℃,饱和压降2.3 | M623 | |
| 6MBI75S-120 | 1200V,100A/TC=25℃,饱和压降2.3 | M626 |
