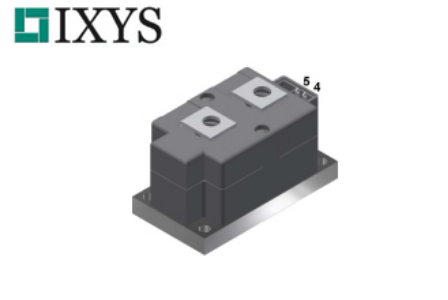

IXYS可控硅
2020-08-12浏览量：1322
IXYS可控硅
| PartNumber | VRRM VDRM (V) | ITAVM Tc=85°C (A) | ITRMS (A) | ITSM 10ms Tvj=45°C (A) | ITSM 8.33ms Tvj=45°C (A) | VT0 (V) | rT (mOhms) | Tvjm (°C) | RthJC max (K/W) | RthCH (K/W) |
| MCO500-12io1 | 1200 | 560 | 880 | 17000 | 16000 | 0.8 | 0.38 | 140 | 0.072 | 0.024 |
| MCC551-12io2 | 1200 | - | - | 18000 | - | - | - | 125 | 0.062 | 0.02 |
| MCC501-12io2 | 1200 | - | - | 14500 | - | - | - | 125 | 0.062 | 0.02 |
| MCO500-14io1 | 1400 | 560 | 880 | 17000 | 16000 | 0.8 | 0.38 | 140 | 0.072 | 0.024 |
| MCO801-14io1 | 1400 | - | - | 30000 | - | - | - | 125 | 0.042 | 0.01 |
| MCC551-14io2 | 1400 | - | - | 18000 | - | - | - | 125 | 0.062 | 0.02 |
| MCC501-14io2 | 1400 | - | - | 14500 | - | - | - | 125 | 0.062 | 0.02 |
| MCO500-16io1 | 1600 | 560 | 880 | 17000 | 16000 | 0.8 | 0.38 | 140 | 0.072 | 0.024 |
| MCO600-16io1 | 1600 | 600 | 928 | 16000 | 15000 | 0.77 | 0.42 | 140 | 0.065 | 0.02 |
| MCC551-16io2 | 1600 | - | - | 18000 | - | - | - | 125 | 0.062 | 0.02 |
| MCO801-16io1 | 1600 | - | - | 30000 | - | - | - | 125 | 0.042 | 0.01 |
| MCC501-16io2 | 1600 | - | - | 14500 | - | - | - | 125 | 0.062 | 0.02 |
| MCO500-18io1 | 1800 | 560 | 880 | 17000 | 16000 | 0.8 | 0.38 | 140 | 0.072 | 0.024 |
| MCO600-18io1 | 1800 | 600 | 928 | 16000 | 15000 | 0.77 | 0.42 | 140 | 0.065 | 0.02 |
| MCO801-18io1 | 1800 | - | - | 30000 | - | - | - | 125 | 0.042 | 0.01 |
| MCC501-18io2 | 1800 | - | - | 14500 | - | - | - | 125 | 0.062 | 0.02 |
| MCO450-20io1 | 2000 | 464 | 750 | 15000 | 16000 | 0.77 | 0.42 | 130 | 0.072 | 0.024 |
| MCO600-20io1 | 2000 | 600 | 928 | 16000 | 15000 | 0.77 | 0.42 | 140 | 0.065 | 0.02 |
| MCO741-20io1 | 2000 | - | - | 23400 | - | - | - | 125 | 0.0405 | 0.01 |
| MCC431-20io2 | 2000 | - | - | 10900 | - | - | - | 125 | 0.062 | 0.02 |
| MCO450-22io1 | 2200 | 464 | 750 | 15000 | 16000 | 0.77 | 0.42 | 130 | 0.072 | 0.024 |
| MCO600-22io1 | 2200 | 600 | 928 | 16000 | 15000 | 0.77 | 0.42 | 140 | 0.065 | 0.02 |
| MCC431-22io2 | 2200 | - | - | 10900 | - | - | - | 125 | 0.062 | 0.02 |
| MCO741-22io1 | 2200 | - | - | 23400 | - | - | - | 125 | 0.0405 | 0.01 |
| MCC431-24io2 | 2400 | - | - | 10900 | - | - | - | 125 | 0.062 | 0.02 |
| MCC552- 16io2 | 1600 | 550 | 85 | 1300 | 17500 | 0.77 | 0.259 | 125 | 0.062 | 0.02 |
| MCC580- 28io7♦ | 2800 | 581 | 85 | 1372 | 21000 | 0.926 | 0.313 | 125 | 0.05 | 0.016 |
| MCC720- 18io7♦ | 1800 | 719 | 85 | 1633 | 28000 | 0.823 | 0.241 | 125 | 0.05 | 0.016 |
